Working Principle of a Velocity Selector

Oct 13, 2025 by wbrum.org 145 views

Introduction

A velocity selector is a crucial device in the field of physics, particularly in the study of charged particles and their behavior in electric and magnetic fields. It is a region where a uniform electric field and a uniform magnetic field coexist, perpendicular to each other and to the initial velocity of the charged particles passing through it. In this article, we will delve into the concept of a velocity selector, its working principle, and its applications in various fields, including education and science.

What is a Velocity Selector?

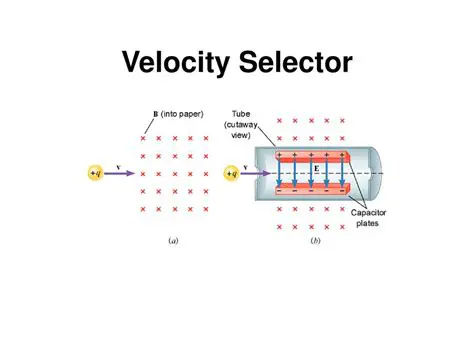

A velocity selector is a device that uses the principles of electromagnetism to select charged particles based on their velocity. It consists of two perpendicular fields: an electric field and a magnetic field. The electric field is created by a pair of parallel plates, while the magnetic field is generated by a pair of coils. The charged particles, such as electrons or ions, are injected into the velocity selector and pass through the region where the two fields intersect.

Working Principle of a Velocity Selector

The working principle of a velocity selector is based on the Lorentz force equation, which describes the force experienced by a charged particle in the presence of electric and magnetic fields. The Lorentz force equation is given by:

F = q(E + v x B)

where F is the force experienced by the charged particle, q is the charge of the particle, E is the electric field strength, v is the velocity of the particle, and B is the magnetic field strength.

In a velocity selector, the electric field and magnetic field are perpendicular to each other, and the charged particles are injected into the device with an initial velocity. As the particles pass through the region where the two fields intersect, they experience a force due to the electric field, which is given by:

F_E = qE

The magnetic field, on the other hand, exerts a force on the particles due to their velocity, which is given by:

F_B = qv x B

The net force experienced by the particles is the sum of the electric and magnetic forces:

F_net = F_E + F_B

For a charged particle to pass through the velocity selector without being deflected, the net force must be zero. This occurs when the electric field and magnetic field strengths are such that the electric force and magnetic force are equal and opposite:

qE = qv x B

This equation can be rearranged to give:

v = E/B

This is the velocity selector equation, which shows that the velocity of the charged particles is determined by the ratio of the electric field strength to the magnetic field strength.

Applications of a Velocity Selector

A velocity selector has several applications in various fields, including education and science. Some of the key applications are:

Particle Accelerators: Velocity selectors are used in particle accelerators to select charged particles based on their velocity. This is essential for accelerating particles to high energies and studying their behavior.
Mass Spectrometry: Velocity selectors are used in mass spectrometry to separate ions based on their mass-to-charge ratio. This is achieved by using a velocity selector to select ions with a specific velocity, which corresponds to a specific mass-to-charge ratio.
Ion Implantation: Velocity selectors are used in ion implantation to select ions with a specific velocity and implant them into a substrate. This is used in the fabrication of semiconductor devices.
Education: Velocity selectors are used in educational institutions to demonstrate the principles of electromagnetism and particle behavior. They provide a hands-on approach to learning and help students understand complex concepts.

Design and Construction of a Velocity Selector

A velocity selector can be designed and constructed using various materials and techniques. Some of the key considerations are:

Electric Field: The electric field is created by a pair of parallel plates, which are typically made of a conductive material such as copper or aluminum.
Magnetic Field: The magnetic field is generated by a pair of coils, which are typically made of a ferromagnetic material such as iron or nickel.
Chamber: The chamber is the region where the electric and magnetic fields intersect. It is typically made of a non-conductive material such as glass or plastic.
Injection System: The injection system is used to inject charged particles into the velocity selector. It typically consists of a source of charged particles, such as an electron gun or an ion source.

Conclusion

Introduction

A velocity selector is a complex device that uses the principles of electromagnetism to select charged particles based on their velocity. In this article, we will answer some of the most frequently asked questions about velocity selectors, providing a deeper understanding of this fascinating device.

Q: What is the purpose of a velocity selector?

A: The primary purpose of a velocity selector is to select charged particles based on their velocity. This is achieved by using a uniform electric field and a uniform magnetic field, which are perpendicular to each other and to the initial velocity of the charged particles passing through it.

Q: How does a velocity selector work?

A: A velocity selector works by using the Lorentz force equation to determine the force experienced by a charged particle in the presence of electric and magnetic fields. The electric field and magnetic field are perpendicular to each other, and the charged particles are injected into the device with an initial velocity. The net force experienced by the particles is the sum of the electric and magnetic forces, and for a charged particle to pass through the velocity selector without being deflected, the net force must be zero.

Q: What are the key components of a velocity selector?

A: The key components of a velocity selector include:

Electric Field: The electric field is created by a pair of parallel plates, which are typically made of a conductive material such as copper or aluminum.
Magnetic Field: The magnetic field is generated by a pair of coils, which are typically made of a ferromagnetic material such as iron or nickel.
Chamber: The chamber is the region where the electric and magnetic fields intersect. It is typically made of a non-conductive material such as glass or plastic.
Injection System: The injection system is used to inject charged particles into the velocity selector. It typically consists of a source of charged particles, such as an electron gun or an ion source.

Q: What are the applications of a velocity selector?

A: A velocity selector has several applications in various fields, including:

Particle Accelerators: Velocity selectors are used in particle accelerators to select charged particles based on their velocity. This is essential for accelerating particles to high energies and studying their behavior.
Mass Spectrometry: Velocity selectors are used in mass spectrometry to separate ions based on their mass-to-charge ratio. This is achieved by using a velocity selector to select ions with a specific velocity, which corresponds to a specific mass-to-charge ratio.
Ion Implantation: Velocity selectors are used in ion implantation to select ions with a specific velocity and implant them into a substrate. This is used in the fabrication of semiconductor devices.
Education: Velocity selectors are used in educational institutions to demonstrate the principles of electromagnetism and particle behavior. They provide a hands-on approach to learning and help students understand complex concepts.

Q: What are the advantages of a velocity selector?

A: The advantages of a velocity selector include:

High accuracy: Velocity selectors can select charged particles with high accuracy, making them ideal for applications such as particle accelerators and mass spectrometry.
High precision: Velocity selectors can select charged particles with high precision, making them ideal for applications such as ion implantation and education.
Flexibility: Velocity selectors can be designed and constructed to meet specific requirements, making them ideal for a wide range of applications.

Q: What are the limitations of a velocity selector?

A: The limitations of a velocity selector include:

Complexity: Velocity selectors are complex devices that require a deep understanding of electromagnetism and particle behavior.
Cost: Velocity selectors can be expensive to design and construct, making them less accessible to some researchers and educators.
Maintenance: Velocity selectors require regular maintenance to ensure optimal performance, which can be time-consuming and costly.

Conclusion

In conclusion, a velocity selector is a complex device that uses the principles of electromagnetism to select charged particles based on their velocity. It has several applications in various fields, including particle accelerators, mass spectrometry, ion implantation, and education. While it has several advantages, including high accuracy, high precision, and flexibility, it also has several limitations, including complexity, cost, and maintenance requirements.
