Understanding Vector Components

Oct 13, 2025 by wbrum.org 133 views

Introduction

Vectors are an essential concept in physics, used to describe quantities with both magnitude and direction. When dealing with vectors that are not parallel or perpendicular, adding them can be a bit more complex. In this article, we will explore the step-by-step process of adding vectors that are not parallel or perpendicular, using a real-life example to illustrate the concept.

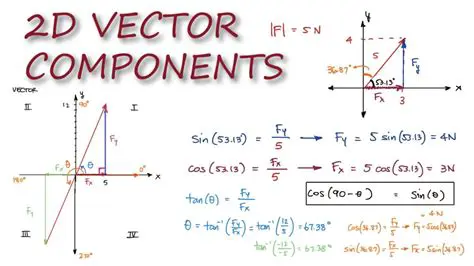

Understanding Vector Components

Before we dive into the process of adding vectors, it's essential to understand vector components. A vector can be broken down into its x and y components, which are the horizontal and vertical components of the vector, respectively. These components can be found using trigonometry, specifically the sine and cosine functions.

Breaking Down Vectors into Components

To add vectors that are not parallel or perpendicular, we need to break them down into their components. This involves finding the x and y components of each vector. Let's consider the example of a student walking 5.0 km [E30°N] and 4.0 km [E60°N]. To break down these vectors into their components, we need to use trigonometry.

Finding the x and y Components of the First Vector

The first vector is 5.0 km [E30°N]. To find the x and y components of this vector, we can use the following formulas:

x-component = magnitude × cos(θ)
y-component = magnitude × sin(θ)

where θ is the angle between the vector and the x-axis.

For the first vector, the x and y components are:

x-component = 5.0 km × cos(30°) = 4.33 km
y-component = 5.0 km × sin(30°) = 2.5 km

Finding the x and y Components of the Second Vector

The second vector is 4.0 km [E60°N]. To find the x and y components of this vector, we can use the same formulas as before:

x-component = magnitude × cos(θ)
y-component = magnitude × sin(θ)

For the second vector, the x and y components are:

x-component = 4.0 km × cos(60°) = 2.0 km
y-component = 4.0 km × sin(60°) = 3.46 km

Adding Vector Components

Now that we have broken down the vectors into their components, we can add them. This involves adding the x and y components of each vector separately.

Adding the x Components

The x components of the two vectors are 4.33 km and 2.0 km. To add these components, we simply add them together:

x-component = 4.33 km + 2.0 km = 6.33 km

Adding the y Components

The y components of the two vectors are 2.5 km and 3.46 km. To add these components, we simply add them together:

y-component = 2.5 km + 3.46 km = 5.96 km

Adding the Perpendicular Vectors

Now that we have added the x and y components of the two vectors, we need to add the two remaining perpendicular vectors. These vectors are the x and y components of the resulting vector.

Finding the Magnitude and Direction of the Resulting Vector

To find the magnitude and direction of the resulting vector, we can use the following formulas:

magnitude = √(x-component^2 + y-component^2)
direction = arctan(y-component / x-component)

For the resulting vector, the magnitude and direction are:

magnitude = √(6.33^2 + 5.96^2) = 8.53 km
direction = arctan(5.96 / 6.33) = 44.5°

Conclusion

Adding vectors that are not parallel or perpendicular involves breaking them down into their components, adding the x and y components separately, and then adding the two remaining perpendicular vectors. By following these steps, we can find the magnitude and direction of the resulting vector. This concept is essential in physics, particularly in the study of motion and forces.

Example Problems

A car travels 10.0 km [E20°N] and 8.0 km [E40°N]. Find the magnitude and direction of the resulting vector.
A person walks 5.0 km [N30°E] and 4.0 km [N60°E]. Find the magnitude and direction of the resulting vector.

Solutions

To find the magnitude and direction of the resulting vector, we need to break down the vectors into their components and add them.

Finding the x and y Components of the First Vector

The first vector is 10.0 km [E20°N]. To find the x and y components of this vector, we can use the following formulas:

x-component = magnitude × cos(θ)
y-component = magnitude × sin(θ)

For the first vector, the x and y components are:

x-component = 10.0 km × cos(20°) = 9.19 km
y-component = 10.0 km × sin(20°) = 3.38 km

Finding the x and y Components of the Second Vector

The second vector is 8.0 km [E40°N]. To find the x and y components of this vector, we can use the same formulas as before:

x-component = magnitude × cos(θ)
y-component = magnitude × sin(θ)

For the second vector, the x and y components are:

x-component = 8.0 km × cos(40°) = 5.66 km
y-component = 8.0 km × sin(40°) = 5.33 km

Adding the x Components

The x components of the two vectors are 9.19 km and 5.66 km. To add these components, we simply add them together:

x-component = 9.19 km + 5.66 km = 14.85 km

Adding the y Components

The y components of the two vectors are 3.38 km and 5.33 km. To add these components, we simply add them together:

y-component = 3.38 km + 5.33 km = 8.71 km

Finding the Magnitude and Direction of the Resulting Vector

To find the magnitude and direction of the resulting vector, we can use the following formulas:

magnitude = √(x-component^2 + y-component^2)
direction = arctan(y-component / x-component)

For the resulting vector, the magnitude and direction are:

magnitude = √(14.85^2 + 8.71^2) = 17.31 km
direction = arctan(8.71 / 14.85) = 34.5°

To find the magnitude and direction of the resulting vector, we need to break down the vectors into their components and add them.

Finding the x and y Components of the First Vector

The first vector is 5.0 km [N30°E]. To find the x and y components of this vector, we can use the following formulas:

x-component = magnitude × cos(θ)
y-component = magnitude × sin(θ)

For the first vector, the x and y components are:

x-component = 5.0 km × cos(30°) = 4.33 km
y-component = 5.0 km × sin(30°) = 2.5 km

Finding the x and y Components of the Second Vector

The second vector is 4.0 km [N60°E]. To find the x and y components of this vector, we can use the same formulas as before:

x-component = magnitude × cos(θ)
y-component = magnitude × sin(θ)

For the second vector, the x and y components are:

x-component = 4.0 km × cos(60°) = 2.0 km
y-component = 4.0 km × sin(60°) = 3.46 km

Adding the x Components

The x components of the two vectors are 4.33 km and 2.0 km. To add these components, we simply add them together:

x-component = 4.33 km + 2.0 km = 6.33 km

Adding the y Components

The y components of the two vectors are 2.5 km and 3.46 km. To add these components, we simply add them together:

y-component = 2.5 km + 3.46 km = 5.96 km

Finding the Magnitude and Direction of the Resulting Vector

To find the magnitude and direction of the resulting vector, we can use the following formulas:

magnitude = √(x-component^2 + y-component^2)
direction = arctan(y-component / x-component)

For the resulting vector, the magnitude and direction are:

magnitude = √(6.33^2 + 5.96^2) = 8.53 km
direction = arctan(5.96 / 6.33) = 44.5°
Adding Vectors that are not Parallel or Perpendicular: A Comprehensive Guide ====================================================================================

Q&A: Adding Vectors that are not Parallel or Perpendicular

Q: What is the process of adding vectors that are not parallel or perpendicular? A: The process of adding vectors that are not parallel or perpendicular involves breaking them down into their components, adding the x and y components separately, and then adding the two remaining perpendicular vectors.

Q: How do I find the x and y components of a vector? A: To find the x and y components of a vector, you can use the following formulas:

x-component = magnitude × cos(θ)
y-component = magnitude × sin(θ)

where θ is the angle between the vector and the x-axis.

Q: What is the difference between adding vectors that are parallel and adding vectors that are not parallel or perpendicular? A: When adding vectors that are parallel, you can simply add their magnitudes. However, when adding vectors that are not parallel or perpendicular, you need to break them down into their components and add the x and y components separately.

Q: Can I use a calculator to find the magnitude and direction of the resulting vector? A: Yes, you can use a calculator to find the magnitude and direction of the resulting vector. Simply plug in the values of the x and y components into the formulas:

magnitude = √(x-component^2 + y-component^2)
direction = arctan(y-component / x-component)

Q: What if I have multiple vectors to add? Can I use the same process? A: Yes, you can use the same process to add multiple vectors. Simply break down each vector into its components, add the x and y components separately, and then add the two remaining perpendicular vectors.

Q: Are there any special cases I should be aware of when adding vectors that are not parallel or perpendicular? A: Yes, there are a few special cases you should be aware of:

If the vectors are perpendicular, the resulting vector will have a magnitude equal to the sum of the magnitudes of the two vectors.
If the vectors are parallel, the resulting vector will have a magnitude equal to the sum of the magnitudes of the two vectors.
If the vectors are at a 90-degree angle, the resulting vector will have a magnitude equal to the product of the magnitudes of the two vectors.

Q: Can I use this process to add vectors in three dimensions? A: Yes, you can use this process to add vectors in three dimensions. Simply break down each vector into its x, y, and z components, add the x, y, and z components separately, and then add the two remaining perpendicular vectors.

Q: Are there any online tools or resources that can help me with adding vectors that are not parallel or perpendicular? A: Yes, there are several online tools and resources that can help you with adding vectors that are not parallel or perpendicular. Some popular options include:

Wolfram Alpha: A powerful online calculator that can help you with adding vectors and other mathematical operations.
Mathway: A online math problem solver that can help you with adding vectors and other mathematical operations.
Khan Academy: A free online learning platform that offers video lessons and practice exercises on adding vectors and other mathematical operations.

Conclusion

Adding vectors that are not parallel or perpendicular is a fundamental concept in physics and mathematics. By following the steps outlined in this article, you can add vectors that are not parallel or perpendicular and find the magnitude and direction of the resulting vector. Whether you're working on a math problem or a physics project, this process is essential for understanding the behavior of vectors in different situations.
