Introduction

In geometry, a frustum of a cone is a three-dimensional shape that is formed by cutting a cone with a plane parallel to its base. The frustum has a top and bottom radius, and a depth, which is the distance between the top and bottom bases. In this article, we will calculate the total surface area of a frustum of a cone with top and bottom radii of 16cm and 8cm respectively, and a depth of 4cm.

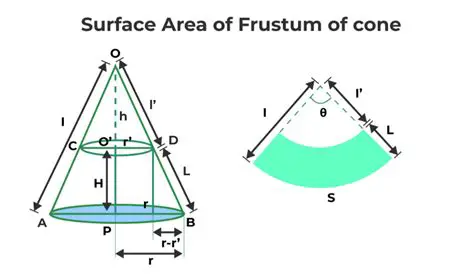

Understanding the Frustum of a Cone

A frustum of a cone is a three-dimensional shape that is formed by cutting a cone with a plane parallel to its base. The frustum has a top and bottom radius, and a depth, which is the distance between the top and bottom bases. The top and bottom bases are circular in shape, and the sides of the frustum are curved.

Calculating the Total Surface Area of the Frustum

To calculate the total surface area of the frustum, we need to calculate the area of the top and bottom bases, and the area of the curved sides. The formula for the total surface area of a frustum is:

TSA = πl(R + r) + π(R^2 + r^2)

where TSA is the total surface area, π is a mathematical constant approximately equal to 3.14, l is the slant height of the frustum, R is the top radius, and r is the bottom radius.

Calculating the Slant Height of the Frustum

To calculate the slant height of the frustum, we need to use the Pythagorean theorem. The Pythagorean theorem states that the square of the length of the hypotenuse of a right-angled triangle is equal to the sum of the squares of the lengths of the other two sides.

In this case, the slant height of the frustum is the hypotenuse of a right-angled triangle with the top and bottom radii as the other two sides. Therefore, we can calculate the slant height as follows:

l = √(h^2 + (R - r)^2)

where l is the slant height, h is the depth of the frustum, R is the top radius, and r is the bottom radius.

Substituting the Values

Now that we have the formula for the total surface area of the frustum, and the formula for the slant height, we can substitute the values into the formula.

The top and bottom radii are given as 16cm and 8cm respectively, and the depth is given as 4cm. Therefore, we can substitute these values into the formula as follows:

R = 16cm r = 8cm h = 4cm

Calculating the Slant Height

Now that we have the values, we can calculate the slant height as follows:

l = √(h^2 + (R - r)^2) = √(4^2 + (16 - 8)^2) = √(16 + 64) = √80 = 8.944

Calculating the Total Surface Area

Now that we have the slant height, we can calculate the total surface area of the frustum as follows:

TSA = πl(R + r) + π(R^2 + r^2) = π(8.944)(16 + 8) + π(16^2 + 8^2) = 3.14(8.944)(24) + 3.14(256 + 64) = 531.36 + 3.14(320) = 531.36 + 1005.12 = 1536.48

Conclusion

In this article, we calculated the total surface area of a frustum of a cone with top and bottom radii of 16cm and 8cm respectively, and a depth of 4cm. We used the formula for the total surface area of a frustum, and the formula for the slant height, to calculate the total surface area. The total surface area of the frustum is approximately 1536.48 square centimeters.

References

"Geometry" by Michael Artin
"Calculus" by Michael Spivak
"Mathematics for Engineers and Scientists" by Donald R. Hill

Glossary

Frustum of a cone: A three-dimensional shape that is formed by cutting a cone with a plane parallel to its base.
Slant height: The distance between the top and bottom bases of a frustum.
Total surface area: The sum of the areas of the top and bottom bases, and the area of the curved sides of a frustum.
The Frustum of a Cone: Q&A =============================

Introduction

In our previous article, we calculated the total surface area of a frustum of a cone with top and bottom radii of 16cm and 8cm respectively, and a depth of 4cm. In this article, we will answer some frequently asked questions about the frustum of a cone.

Q: What is the frustum of a cone?

A: The frustum of a cone is a three-dimensional shape that is formed by cutting a cone with a plane parallel to its base. It has a top and bottom radius, and a depth, which is the distance between the top and bottom bases.

Q: What are the different parts of a frustum of a cone?

A: The different parts of a frustum of a cone are:

Top base: The circular base at the top of the frustum.
Bottom base: The circular base at the bottom of the frustum.
Curved sides: The curved surface of the frustum between the top and bottom bases.
Slant height: The distance between the top and bottom bases of the frustum.

Q: How do I calculate the total surface area of a frustum of a cone?

A: To calculate the total surface area of a frustum of a cone, you need to use the formula:

TSA = πl(R + r) + π(R^2 + r^2)

where TSA is the total surface area, π is a mathematical constant approximately equal to 3.14, l is the slant height of the frustum, R is the top radius, and r is the bottom radius.

Q: How do I calculate the slant height of a frustum of a cone?

A: To calculate the slant height of a frustum of a cone, you need to use the Pythagorean theorem. The Pythagorean theorem states that the square of the length of the hypotenuse of a right-angled triangle is equal to the sum of the squares of the lengths of the other two sides.

In this case, the slant height of the frustum is the hypotenuse of a right-angled triangle with the top and bottom radii as the other two sides. Therefore, you can calculate the slant height as follows:

l = √(h^2 + (R - r)^2)

where l is the slant height, h is the depth of the frustum, R is the top radius, and r is the bottom radius.

Q: What are some real-life applications of the frustum of a cone?

A: The frustum of a cone has many real-life applications, including:

Architecture: The frustum of a cone is used in the design of many buildings, including skyscrapers and bridges.
Engineering: The frustum of a cone is used in the design of many machines, including gears and pulleys.
Art: The frustum of a cone is used in the creation of many sculptures and other works of art.

Q: Can I use the frustum of a cone in my math homework?

A: Yes, you can use the frustum of a cone in your math homework. The frustum of a cone is a useful tool for calculating the surface area of a three-dimensional shape.

Q: How do I find the volume of a frustum of a cone?

A: To find the volume of a frustum of a cone, you need to use the formula:

V = (1/3)πh(R^2 + r^2 + Rr)

where V is the volume, π is a mathematical constant approximately equal to 3.14, h is the depth of the frustum, R is the top radius, and r is the bottom radius.

Conclusion

In this article, we answered some frequently asked questions about the frustum of a cone. We hope that this article has been helpful in understanding the frustum of a cone and its applications.

References

"Geometry" by Michael Artin
"Calculus" by Michael Spivak
"Mathematics for Engineers and Scientists" by Donald R. Hill

Glossary

Frustum of a cone: A three-dimensional shape that is formed by cutting a cone with a plane parallel to its base.
Slant height: The distance between the top and bottom bases of a frustum.
Total surface area: The sum of the areas of the top and bottom bases, and the area of the curved sides of a frustum.
Volume: The amount of space inside a three-dimensional shape.
