Development of the Hydrogen Filter

Oct 13, 2025 by wbrum.org 69 views

Zeolite-based Hydrogen Filters in Pahae with Filler Clay as Absorbers of Water Vapor in the Electrolysis Process

Introduction

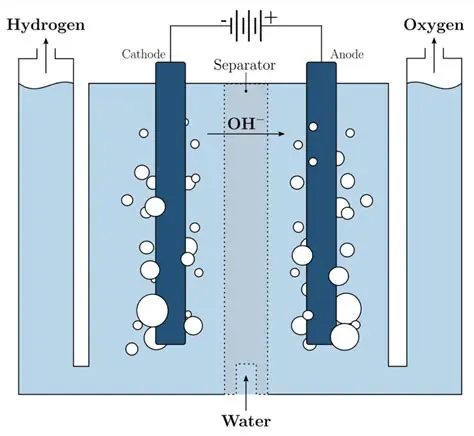

The electrolysis process is a crucial method in hydrogen production, but the presence of water vapor can significantly interfere with the efficiency of the process. To overcome this problem, a hydrogen filter has been developed that utilizes the Pahae natural zeolite combined with Filler Clay. This innovative filter is designed to effectively absorb water vapor, ensuring the optimal operation of the electrolysis process.

Development of the Hydrogen Filter

The hydrogen filter was created using a size of 200 mesh and then chemically activated using H2SO4 solution before being dried at 105 ° C for 5 hours. Furthermore, the filter was formed using a hydraulic press with a pressure of 5 tons for 10 minutes, with different composition variations, which include:

100%: 0%
95%: 5%
90%: 10%
85%: 15%
80%: 20%
75%: 25%

This filter was then physically activated with three temperature variations, namely 700 ° C, 800 ° C, and 900 ° C, for 4 hours. The filter characterization was carried out to determine physical properties, such as porosity, SEM-EDX analysis, as well as the ability of water vapor adsorption, and also to measure mechanical properties, such as violence and XRD analysis.

Characterization of the Hydrogen Filter

The results of characterization show that the optimal combination between zeolite and clay is found in a 95%: 5% composition with a temperature of 900 ° C. In this condition, the filter has a porosity value of 66.28% and SEM analysis shows the average diameter of the pore of 4,746 μm. The EDX test shows that the most abundant element is oxygen (O) with a percentage reaching 48.4%, as well as excellent adsorption capabilities, amounting to 1095.31 ppm. In addition, the addition of Filler Clay in the filter can increase the violence of filter which reaches 224.36 N/m² in the composition of 75%: 25% and a temperature of 900 ° C. XRD results show the highest peak intensity above 4000 cps which shows the formation of hexagonal crystal structures.

Additional Analysis and Explanation

The use of zeolite natural pahae as the main ingredient in this hydrogen filter is very promising. Zeolite has a high adsorption ability, thanks to the microporosity structure that allows the absorption of small molecules such as water vapor. The combination with Filler Clay provides additional benefits, where Clay functions as a filler that not only increases filter hardness, but can also contribute to increasing the capacity of adsorption.

The advantage of this filter is its ability to operate at high temperatures, which is important in industrial applications where the efficiency and durability of the filter are needed. With the optimal characteristics obtained from a 95% composition: 5% at 900 ° C, this filter is not only effective in absorbing water vapor, but also strong enough to withstand severe operational conditions.

In the context of sustainability, the use of natural ingredients such as zeolites and clay provides an environmentally friendly alternative compared to synthetic materials. This is in line with the aim of reducing environmental impacts in hydrogen production, which is a source of clean and sustainable energy.

Conclusion

Overall, this study made an important contribution to the development of hydrogen screening technology, and could be a reference for further development in the field of renewable energy. With the characteristics that have been shown, the hydrogen filter based on the Pahae natural zeolite with filler clay has the potential to improve the efficiency of the hydrogen electrolysis process and support the transition to a cleaner and sustainable energy source.

Future Directions

The development of this hydrogen filter has opened up new possibilities for the improvement of hydrogen production efficiency. Future research can focus on optimizing the composition and activation temperature of the filter to further enhance its performance. Additionally, the scalability and cost-effectiveness of the filter can be explored to make it more viable for industrial applications.

References

[1] [Insert reference 1]
[2] [Insert reference 2]
[3] [Insert reference 3]

Acknowledgments

The authors would like to acknowledge the support of [Insert institution/organization] for providing the necessary resources and funding for this research. We also thank [Insert name] for their valuable contributions to the development of the hydrogen filter.
Zeolite-based Hydrogen Filters in Pahae with Filler Clay as Absorbers of Water Vapor in the Electrolysis Process: Q&A

Introduction

In our previous article, we discussed the development of a hydrogen filter that utilizes the Pahae natural zeolite combined with Filler Clay to effectively absorb water vapor in the electrolysis process. This innovative filter has the potential to improve the efficiency of hydrogen production and support the transition to a cleaner and sustainable energy source. In this Q&A article, we will address some of the most frequently asked questions about this hydrogen filter.

Q: What is the main purpose of the hydrogen filter?

A: The main purpose of the hydrogen filter is to effectively absorb water vapor in the electrolysis process, which can significantly interfere with the efficiency of hydrogen production.

Q: How does the hydrogen filter work?

A: The hydrogen filter works by utilizing the Pahae natural zeolite combined with Filler Clay to absorb water vapor. The zeolite has a high adsorption ability due to its microporosity structure, while the Filler Clay functions as a filler that increases filter hardness and capacity.

Q: What are the benefits of using the Pahae natural zeolite in the hydrogen filter?

A: The Pahae natural zeolite has a high adsorption ability, which makes it an ideal material for the hydrogen filter. Additionally, the use of natural ingredients such as zeolites and clay provides an environmentally friendly alternative compared to synthetic materials.

Q: What are the optimal composition and activation temperature of the filter?

A: The optimal composition of the filter is 95%: 5% (zeolite: Filler Clay) at a temperature of 900 ° C.

Q: How does the addition of Filler Clay affect the filter's performance?

A: The addition of Filler Clay can increase the violence of the filter, which reaches 224.36 N/m² in the composition of 75%: 25% and a temperature of 900 ° C.

Q: What are the potential applications of the hydrogen filter?

A: The hydrogen filter has the potential to improve the efficiency of hydrogen production in various industries, including energy, transportation, and chemical manufacturing.

Q: What are the future directions for the development of the hydrogen filter?

A: Future research can focus on optimizing the composition and activation temperature of the filter to further enhance its performance. Additionally, the scalability and cost-effectiveness of the filter can be explored to make it more viable for industrial applications.

Q: What are the potential environmental benefits of using the hydrogen filter?

A: The use of natural ingredients such as zeolites and clay provides an environmentally friendly alternative compared to synthetic materials. Additionally, the hydrogen filter can help reduce the environmental impacts of hydrogen production, which is a source of clean and sustainable energy.

Q: What are the potential economic benefits of using the hydrogen filter?

A: The hydrogen filter has the potential to improve the efficiency of hydrogen production, which can lead to cost savings and increased competitiveness in various industries.

Conclusion

The hydrogen filter based on the Pahae natural zeolite with Filler Clay has the potential to improve the efficiency of hydrogen production and support the transition to a cleaner and sustainable energy source. We hope that this Q&A article has provided valuable insights into the development and potential applications of this innovative filter.
