BitLocker Drive Encryption

Oct 13, 2025 by wbrum.org 121 views

Introduction

BitLocker is a full disk encryption feature included with Windows operating systems. It provides a way to encrypt the entire hard drive, including the operating system, user data, and programs. However, when using Linux, accessing BitLocker encrypted drives can be a challenge. In this article, we will explore how to automatically mount external BitLocker encrypted drives at boot time on a Linux system.

Prerequisites

Before we dive into the process, make sure you have the following:

A Linux system (such as Alma Linux or Rocky Linux)
An external, BitLocker encrypted NTFS drive
The cryptsetup package installed on your system
The ntfs-3g package installed on your system (for NTFS file system support)
A Windows system with BitLocker enabled (for encryption and decryption)

Step 1: Prepare the Windows System

To access the BitLocker encrypted drive on Linux, you need to prepare the Windows system first. Here's what you need to do:

1.1 Enable BitLocker on the Windows System

Enable BitLocker on the Windows system by following these steps:

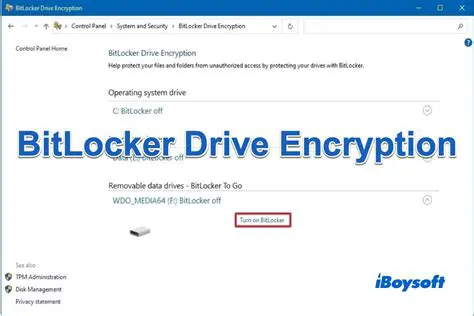

Go to Control Panel > System and Security > BitLocker Drive Encryption
Select the drive you want to encrypt and click Turn on BitLocker
Follow the prompts to complete the encryption process

1.2 Save the BitLocker Recovery Key

Save the BitLocker recovery key to a safe location. You will need this key to decrypt the drive on Linux.

Step 2: Prepare the Linux System

Now that the Windows system is prepared, it's time to prepare the Linux system. Here's what you need to do:

2.1 Install Required Packages

Install the required packages on your Linux system:

sudo dnf install cryptsetup ntfs-3g

2.2 Create a Mount Point

Create a mount point for the BitLocker encrypted drive:

sudo mkdir /mnt/bitlocker

Step 3: Decrypt and Mount the BitLocker Encrypted Drive

Now that the Linux system is prepared, it's time to decrypt and mount the BitLocker encrypted drive. Here's what you need to do:

3.1 Decrypt the BitLocker Encrypted Drive

Decrypt the BitLocker encrypted drive using the cryptsetup command:

sudo cryptsetup open --type=bitlocker /dev/sdb1 bitlocker

Replace /dev/sdb1 with the actual device name of the BitLocker encrypted drive.

3.2 Mount the Decrypted Drive

Mount the decrypted drive using the mount command:

sudo mount /dev/mapper/bitlocker /mnt/bitlocker

Step 4: Configure the System to Automatically Mount the Drive

To automatically mount the drive at boot time, you need to configure the system to do so. Here's what you need to do:

4.1 Create a systemd Service File

Create a systemd service file to automate the decryption and mounting process:

sudo nano /etc/systemd/system/bitlocker.service

Add the following content to the file:

[Unit]
Description=Decrypt and Mount BitLocker Encrypted Drive
Before=local-fs.target

[Service]
ExecStart=/usr/bin/cryptsetup open --type=bitlocker /dev/sdb1 bitlocker
ExecStart=/usr/bin/mount /dev/mapper/bitlocker /mnt/bitlocker
Restart=always

[Install]
WantedBy=multi-user.target

Replace /dev/sdb1 with the actual device name of the BitLocker encrypted drive.

4.2 Reload the systemd Daemon

Reload the systemd daemon to pick up the new service file:

sudo systemctl daemon-reload

4.3 Enable the systemd Service

Enable the systemd service to start automatically at boot time:

sudo systemctl enable bitlocker.service

Conclusion

In this article, we explored how to automatically mount external BitLocker encrypted drives at boot time on a Linux system. We covered the prerequisites, prepared the Windows system, prepared the Linux system, decrypted and mounted the BitLocker encrypted drive, and configured the system to automatically mount the drive. With these steps, you should now be able to access your BitLocker encrypted drive on Linux without any issues.

Troubleshooting

If you encounter any issues during the process, here are some troubleshooting tips:

Make sure the cryptsetup and ntfs-3g packages are installed on your system.
Check the device name of the BitLocker encrypted drive and replace it in the cryptsetup and mount commands.
Verify that the BitLocker recovery key is saved to a safe location.
Check the system logs for any errors related to the decryption and mounting process.

Q: What is BitLocker and how does it work?

A: BitLocker is a full disk encryption feature included with Windows operating systems. It provides a way to encrypt the entire hard drive, including the operating system, user data, and programs. When a BitLocker encrypted drive is connected to a Linux system, it appears as an encrypted device, and the Linux system needs to be configured to decrypt and mount it.

Q: What are the system requirements for automatically mounting BitLocker encrypted drives on Linux?

A: The system requirements for automatically mounting BitLocker encrypted drives on Linux include:

A Linux system (such as Alma Linux or Rocky Linux)
An external, BitLocker encrypted NTFS drive
The cryptsetup package installed on your system
The ntfs-3g package installed on your system (for NTFS file system support)
A Windows system with BitLocker enabled (for encryption and decryption)

Q: How do I enable BitLocker on my Windows system?

A: To enable BitLocker on your Windows system, follow these steps:

Go to Control Panel > System and Security > BitLocker Drive Encryption
Select the drive you want to encrypt and click Turn on BitLocker
Follow the prompts to complete the encryption process

Q: How do I save the BitLocker recovery key?

A: To save the BitLocker recovery key, follow these steps:

Go to Control Panel > System and Security > BitLocker Drive Encryption
Click on the drive you want to encrypt and click Save recovery key
Choose a location to save the recovery key and click Save

Q: How do I decrypt and mount the BitLocker encrypted drive on Linux?

A: To decrypt and mount the BitLocker encrypted drive on Linux, follow these steps:

Install the required packages on your Linux system: sudo dnf install cryptsetup ntfs-3g
Create a mount point for the BitLocker encrypted drive: sudo mkdir /mnt/bitlocker
Decrypt the BitLocker encrypted drive using the cryptsetup command: sudo cryptsetup open --type=bitlocker /dev/sdb1 bitlocker
Mount the decrypted drive using the mount command: sudo mount /dev/mapper/bitlocker /mnt/bitlocker

Q: How do I configure the system to automatically mount the BitLocker encrypted drive at boot time?

A: To configure the system to automatically mount the BitLocker encrypted drive at boot time, follow these steps:

Create a systemd service file to automate the decryption and mounting process: sudo nano /etc/systemd/system/bitlocker.service
Add the following content to the file:

[Unit]
Description=Decrypt and Mount BitLocker Encrypted Drive
Before=local-fs.target

[Service]
ExecStart=/usr/bin/cryptsetup open --type=bitlocker /dev/sdb1 bitlocker
ExecStart=/usr/bin/mount /dev/mapper/bitlocker /mnt/bitlocker
Restart=always

[Install]
WantedBy=multi-user.target

Reload the systemd daemon to pick up the new service file: sudo systemctl daemon-reload
Enable the systemd service to start automatically at boot time: sudo systemctl enable bitlocker.service

Q: What are some common issues that may occur when trying to automatically mount BitLocker encrypted drives on Linux?

A: Some common issues that may occur when trying to automatically mount BitLocker encrypted drives on Linux include:

The cryptsetup and ntfs-3g packages are not installed on the system.
The device name of the BitLocker encrypted drive is incorrect.
The BitLocker recovery key is not saved to a safe location.
The system logs indicate errors related to the decryption and mounting process.

Q: How do I troubleshoot issues related to automatically mounting BitLocker encrypted drives on Linux?

A: To troubleshoot issues related to automatically mounting BitLocker encrypted drives on Linux, follow these steps:

Check the system logs for any errors related to the decryption and mounting process.
Verify that the cryptsetup and ntfs-3g packages are installed on the system.
Check the device name of the BitLocker encrypted drive and replace it in the cryptsetup and mount commands.
Verify that the BitLocker recovery key is saved to a safe location.

By following these FAQs, you should be able to troubleshoot and resolve any issues related to automatically mounting BitLocker encrypted drives on Linux.
