Benefits of Using Application Gateway for Containers

Oct 13, 2025 by wbrum.org 106 views

Introduction

In today's digital landscape, containerization has become a crucial aspect of modern application development. With the rise of container orchestration platforms like Kubernetes, deploying and managing containerized applications has become more efficient and scalable. However, as the complexity of containerized applications grows, so does the need for robust and secure networking solutions. This is where Application Gateway for containers comes into play. In this article, we will delve into the world of Application Gateway for containers, exploring its benefits, implementation, and best practices.

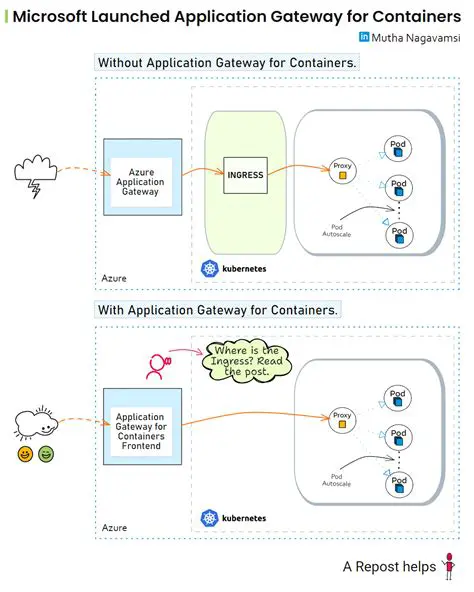

What is Application Gateway for Containers?

Application Gateway for containers is a network service provided by Azure that enables secure and scalable communication between containers and external services. It acts as a reverse proxy, routing incoming traffic to the correct container instance, while also providing features like load balancing, SSL termination, and web application firewall (WAF) protection.

Benefits of Using Application Gateway for Containers

Improved Security: Application Gateway for containers provides a secure entry point for incoming traffic, protecting your containerized applications from external threats.
Scalability: With Application Gateway, you can scale your containerized applications horizontally, without worrying about the underlying infrastructure.
Load Balancing: Application Gateway provides load balancing capabilities, ensuring that incoming traffic is distributed evenly across multiple container instances.
SSL Termination: Application Gateway can terminate SSL connections, reducing the load on your container instances and improving overall performance.

Prerequisites for Implementing Application Gateway for Containers

Before implementing Application Gateway for containers, you will need:

Azure Subscription: You will need an Azure subscription to create and manage your Application Gateway.
AKS Cluster: You will need an Azure Kubernetes Service (AKS) cluster to deploy and manage your containerized applications.
Terraform: You will need Terraform to create and manage your Azure resources, including the Application Gateway.

Implementing Application Gateway for Containers using Terraform

To implement Application Gateway for containers using Terraform, you will need to create a Terraform configuration file that defines the necessary resources, including the Application Gateway, AKS cluster, and container instances.

Step 1: Create an AKS Cluster using Terraform

To create an AKS cluster using Terraform, you will need to define the following resources:

azurerm_resource_group: Create a resource group to hold your AKS cluster.
azurerm_kubernetes_cluster: Create an AKS cluster with the desired configuration.
azurerm_kubernetes_cluster_node_pool: Create a node pool for your AKS cluster.

# Configure the Azure Provider
provider "azurerm" {
  version = "2.34.0"
  subscription_id = "your_subscription_id"
  client_id      = "your_client_id"
  client_secret = "your_client_secret"
  tenant_id      = "your_tenant_id"
}

# Create a resource group
resource "azurerm_resource_group" "example" {
  name     = "example-resource-group"
  location = "West US"
}

# Create an AKS cluster
resource "azurerm_kubernetes_cluster" "example" {
  name                = "example-aks-cluster"
  location            = azurerm_resource_group.example.location
  resource_group_name = azurerm_resource_group.example.name
  dns_prefix          = "example-aks-cluster"

  default_node_pool {
    name       = "default"
    node_count = 1
    vm_size    = "Standard_DS2_v2"
  }

  identity {
    type = "SystemAssigned"
  }
}

# Create a node pool
resource "azurerm_kubernetes_cluster_node_pool" "example" {
  name                  = "example-node-pool"
  kubernetes_cluster_id = azurerm_kubernetes_cluster.example.id
  vm_size               = "Standard_DS2_v2"
  node_count            = 1
}

Step 2: Create an Application Gateway using Terraform

To create an Application Gateway using Terraform, you will need to define the following resources:

azurerm_resource_group: Create a resource group to hold your Application Gateway.
azurerm_application_gateway: Create an Application Gateway with the desired configuration.

# Create a resource group
resource "azurerm_resource_group" "example" {
  name     = "example-resource-group"
  location = "West US"
}

# Create an Application Gateway
resource "azurerm_application_gateway" "example" {
  name                = "example-application-gateway"
  location            = azurerm_resource_group.example.location
  resource_group_name = azurerm_resource_group.example.name

  sku {
    name     = "Standard_Small"
    tier     = "Standard"
    capacity = 1
  }

  gateway_ip_configuration {
    name      = "example-gateway-ip-configuration"
    subnet_id = azurerm_subnet.example.id
  }

  frontend_ip_configuration {
    name      = "example-frontend-ip-configuration"
    private_ip_address = "10.0.0.100"
  }

  frontend_port {
    name      = "example-frontend-port"
    port      = 80
  }

  backend_address_pool {
    name      = "example-backend-address-pool"
  }

  backend_http_settings {
    name      = "example-backend-http-settings"
    port      = 80
    cookie_based_affinity = "Enabled"
    protocol = "Http"
    host_name = "example.com"
  }

  http_listener {
    name      = "example-http-listener"
    frontend_ip_configuration_name = "example-frontend-ip-configuration"
    frontend_port_name = "example-frontend-port"
    protocol = "Http"
  }

  request_routing_rule {
    name      = "example-request-routing-rule"
    rule_type = "Basic"
    backend_address_pool_name = "example-backend-address-pool"
    backend_http_settings_name = "example-backend-http-settings"
    http_listener_name = "example-http-listener"
  }
}

Step 3: Deploy a Container Instance using Terraform

To deploy a container instance using Terraform, you will need to define the following resources:

azurerm_resource_group: Create a resource group to hold your container instance.
azurerm_container_group: Create a container group with the desired configuration.

# Create a resource group
resource "azurerm_resource_group" "example" {
  name     = "example-resource-group"
  location = "West US"
}

# Create a container group
resource "azurerm_container_group" "example" {
  name                = "example-container-group"
  location            = azurerm_resource_group.example.location
  resource_group_name = azurerm_resource_group.example.name
  ip_address_type     = "Public"
  dns_name_label      = "example-container-group"

  container {
    name            = "example-container"
    image           = "mcr.microsoft.com/oss/nginx/nginx:1.15.5-alpine"
    cpu             = "0.5"
    memory          = "1.5"
    port            = 80
  }
}

Conclusion

In this article, we explored the concept of Application Gateway for containers, its benefits, and implementation using Terraform. We also covered the prerequisites for implementing Application Gateway for containers, including Azure subscription, AKS cluster, and Terraform. By following the steps outlined in this article, you can implement Application Gateway for containers and secure your containerized applications.

Best Practices

Use a secure connection: Use a secure connection (HTTPS) to communicate between your container instances and the Application Gateway.
Use a load balancer: Use a load balancer to distribute incoming traffic across multiple container instances.
Monitor your Application Gateway: Monitor your Application Gateway to ensure it is functioning correctly and to identify any issues.
Use a WAF: Use a web application firewall (WAF) to protect your containerized applications from external threats.

Introduction

In our previous article, we explored the concept of Application Gateway for containers, its benefits, and implementation using Terraform. In this article, we will answer some of the most frequently asked questions about Application Gateway for containers.

Q: What is Application Gateway for containers?

A: Application Gateway for containers is a network service provided by Azure that enables secure and scalable communication between containers and external services. It acts as a reverse proxy, routing incoming traffic to the correct container instance, while also providing features like load balancing, SSL termination, and web application firewall (WAF) protection.

Q: What are the benefits of using Application Gateway for containers?

A: The benefits of using Application Gateway for containers include:

Improved Security: Application Gateway for containers provides a secure entry point for incoming traffic, protecting your containerized applications from external threats.
Scalability: With Application Gateway, you can scale your containerized applications horizontally, without worrying about the underlying infrastructure.
Load Balancing: Application Gateway provides load balancing capabilities, ensuring that incoming traffic is distributed evenly across multiple container instances.
SSL Termination: Application Gateway can terminate SSL connections, reducing the load on your container instances and improving overall performance.

Q: What are the prerequisites for implementing Application Gateway for containers?

A: The prerequisites for implementing Application Gateway for containers include:

Azure Subscription: You will need an Azure subscription to create and manage your Application Gateway.
AKS Cluster: You will need an Azure Kubernetes Service (AKS) cluster to deploy and manage your containerized applications.
Terraform: You will need Terraform to create and manage your Azure resources, including the Application Gateway.

Q: How do I implement Application Gateway for containers using Terraform?

A: To implement Application Gateway for containers using Terraform, you will need to create a Terraform configuration file that defines the necessary resources, including the Application Gateway, AKS cluster, and container instances.

Q: What are the steps to implement Application Gateway for containers using Terraform?

A: The steps to implement Application Gateway for containers using Terraform are:

Create an AKS Cluster: Create an AKS cluster using Terraform.
Create an Application Gateway: Create an Application Gateway using Terraform.
Deploy a Container Instance: Deploy a container instance using Terraform.

Q: How do I secure my containerized applications using Application Gateway for containers?

A: To secure your containerized applications using Application Gateway for containers, you can:

Use a secure connection: Use a secure connection (HTTPS) to communicate between your container instances and the Application Gateway.
Use a load balancer: Use a load balancer to distribute incoming traffic across multiple container instances.
Monitor your Application Gateway: Monitor your Application Gateway to ensure it is functioning correctly and to identify any issues.
Use a WAF: Use a web application firewall (WAF) to protect your containerized applications from external threats.

Q: What are the best practices for implementing Application Gateway for containers?

A: The best practices for implementing Application Gateway for containers include:

Use a secure connection: Use a secure connection (HTTPS) to communicate between your container instances and the Application Gateway.
Use a load balancer: Use a load balancer to distribute incoming traffic across multiple container instances.
Monitor your Application Gateway: Monitor your Application Gateway to ensure it is functioning correctly and to identify any issues.
Use a WAF: Use a web application firewall (WAF) to protect your containerized applications from external threats.

Conclusion

In this article, we answered some of the most frequently asked questions about Application Gateway for containers. We covered the benefits, prerequisites, and implementation steps for Application Gateway for containers using Terraform. We also discussed the best practices for securing and monitoring your containerized applications using Application Gateway for containers.
